Newport Explorer Propane Fireplace Heater

Newport Explorer Propane Fireplace Heater

  • DefaultTitle

$ 75.58

$ 58.14

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable

Product Details

The Newport Explorer by Dickinson Marine

The Newport Explorer is the first direct vent propane heater designed and CSA, ANSI, and ABYC certified specifically for RV's, Tiny Homes, Cabins, and Marine applications!

Free Shipping! (remote locations excluded)

Highlights:

  • No power required to operate!
  • Comes with built-in 12vDC fan for optional use (0.4A)
  • High-quality stainless steel construction
  • Large fireplace window
  • Flame-out safety shut off system
  • Direct vent = safe & no moisture accumulation inside the building
  • Quiet blower fan
  • Designed to operate up to 5000FT elevations
  • 4700 BTU output
  • 230SF effective heating area*
  • Low fuel consumption
  • CSA approved

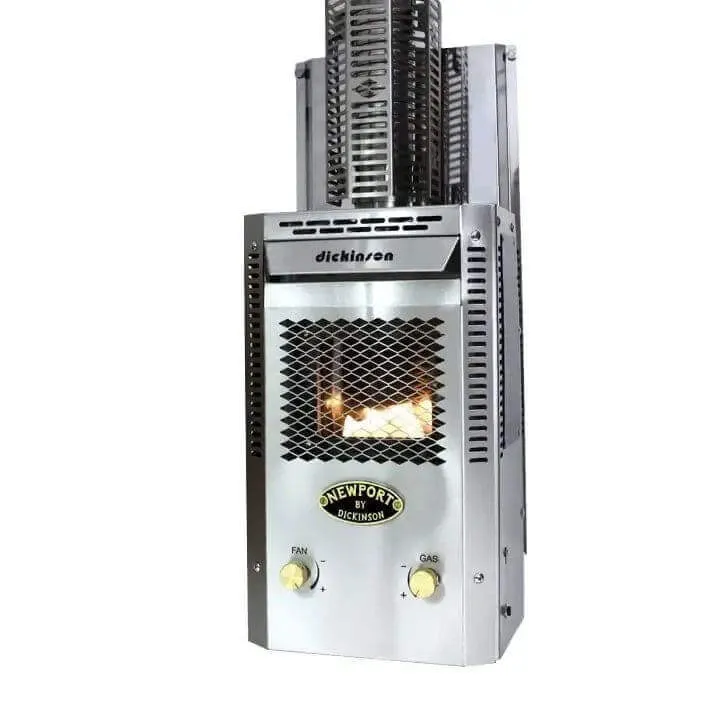

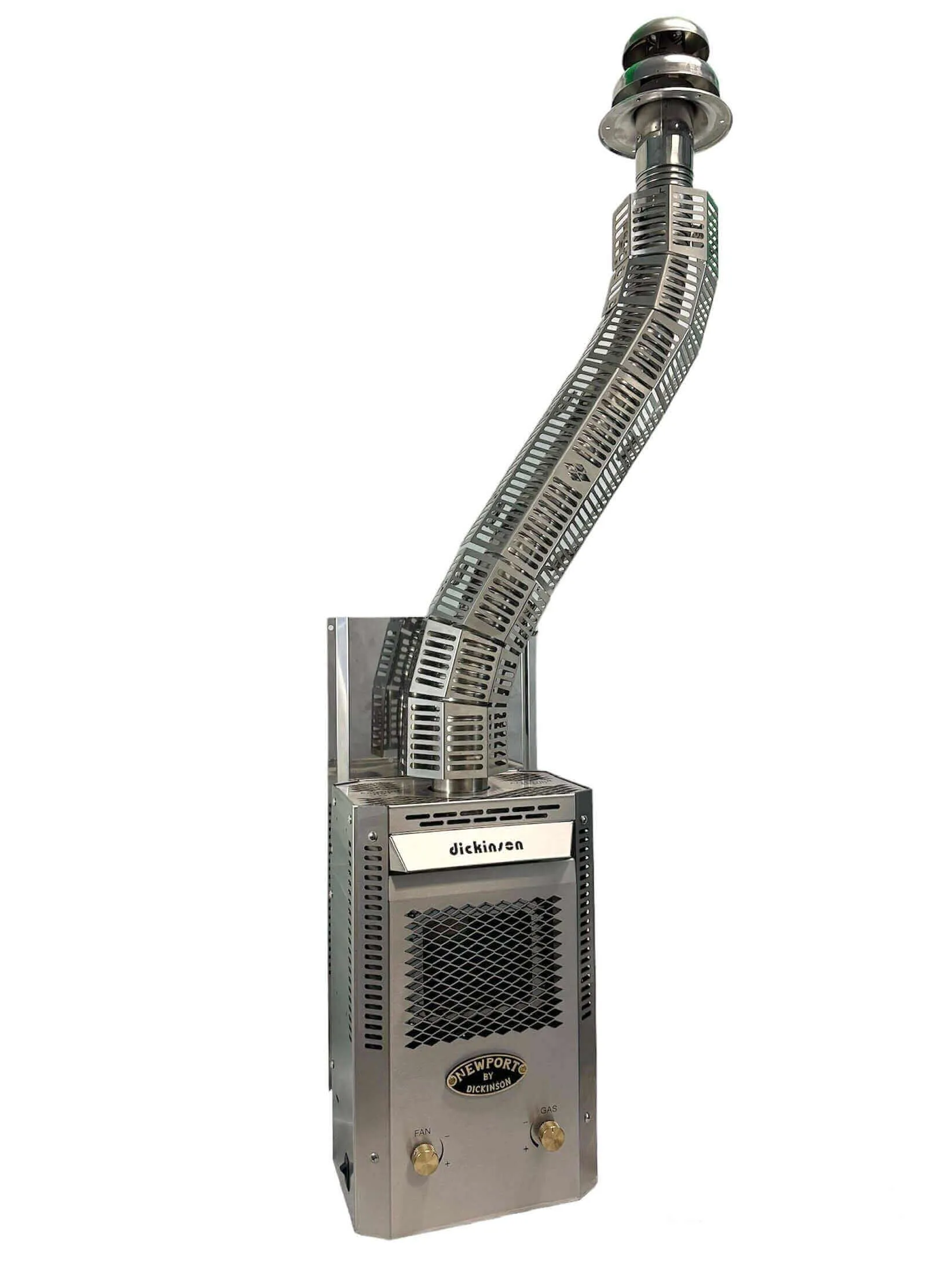

(Chimney guard may be shown in some images but is sold separately)

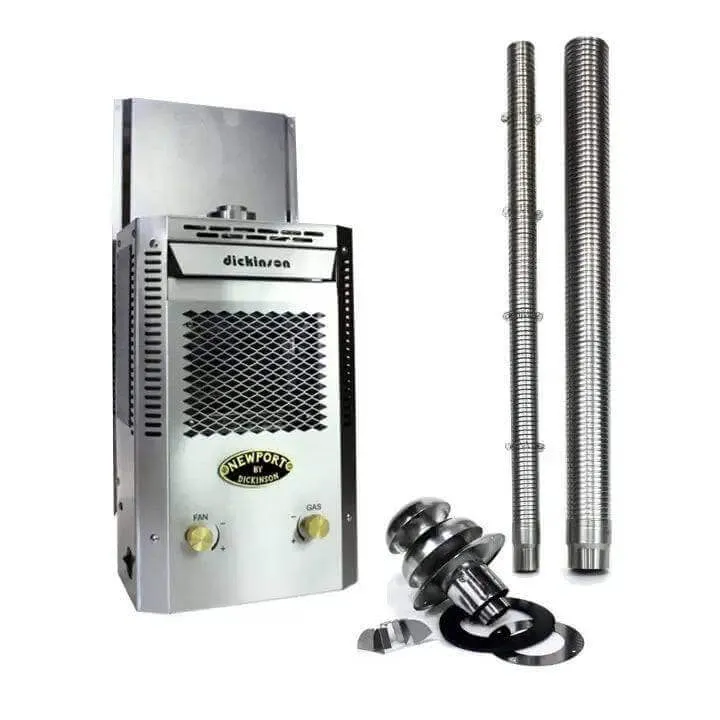

This heater comes with a wall mounting plate, 28" of chimney for venting the exhaust/providing heater with fresh air a chimney fitting & cap. All that is needed is a propane hose, a low pressure regulator, and fittings to connect to your LPG tank

*Note: The effective heating area is approximate and can be affected by a number of factors including wall, floor, and ceiling insulation, ceiling height, and construction quality of the building.

Features:

  • Dual Hot Air Venting

Both the top of the heater and the hot air vent will discharge hot air. With the blower fan off, heat will emit from the top grill. With fan on, heat will blow from the vent above the window.

  • Heat Isolating Body

The outer panels of the heater are configured to not conduct heat from the firebox within, minimizing burn risks from outside the appliance.

  • Push Button Lighting

Pressing the button on the right side of the heater will activate the battery operated sparker inside the heater, quickly igniting the burner (AA battery required).

Specifications:

  • Height: 17"
  • Width: 10.75"
  • Depth: 8.25"
  • Min Flue: 21"
  • Max Flue: 56"
  • Wall Liner: 24.75" x 10.25"
  • Elec Draw: 12v @ 0.4 Amps
  • Blower Fan: 67 CFM
  • Ignition: AA Battery
  • Fuel: Propane
  • Fuel Consumption (using 20lb tank):
    • Low Setting: 140 Hours
    • High Setting: 100 Hours
  • Pressure: 11" WC
  • Capacity: 230 SQ. FT
  • BTU: 4700
  • Altitude: Up to 5000 FT
  • Clearances:
    • 21" Above
    • 6" Below
    • 2" Sides

Downloads:
